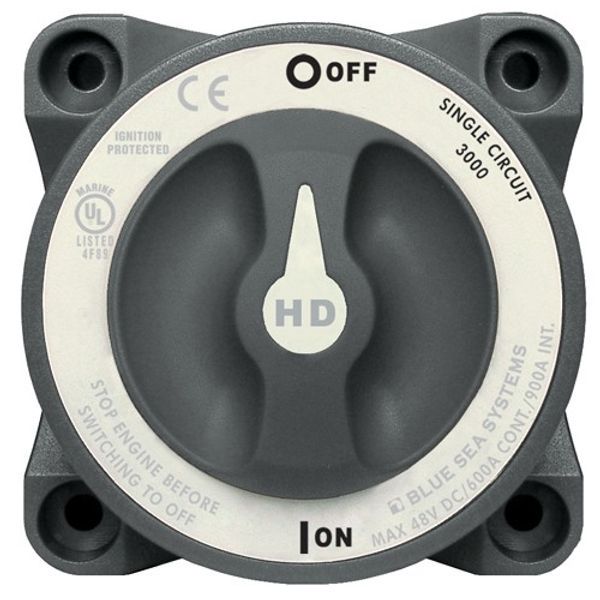

Heavy Duty Battery Switch On/Off 600A
Product Details
Brand: Blue Sea Systems
HD BATTERY SWITCH (Heavy Duty) Up to 600 Ampere continuous rating for large diesel engines.
Label with international legends
Tactile indicator conveys knob position by feel
Accepts up to 4/0 AWG (120mm2) battery cables
Case design allows surface or rear panel mounting
7/8" (22mm) stud length accepts multiple cable terminals
One-piece terminal stud design never loosens over time
M12 tin-plated copper studs for maximum conductivity & corrosion resistance, accepts 1/2" (M12) ring terminals
Specifications:
Terminal Stud Size: 1/2" (M12)
Terminal Stud Torque: 220 in-lbs
Mounting Holes: Accepts M6 screw
Cable Size to Meet Ratings: 4/0 AWG (95mm2)
Cable Clearance: 1.10" (28mm)
Brand Blue Sea Systems
Voltage Description32V DC Maximum
Amps Description Continuous: 600A, Intermittent (5 minutes): 900A, Cranking (10 seconds): 2750A
Approvals CE marked, ISO 8846, UL Listed UL 1107 electric power switches, Meets ABYC requirements, Meets UL1500 & SAE J1171 external ignition protection requirements
