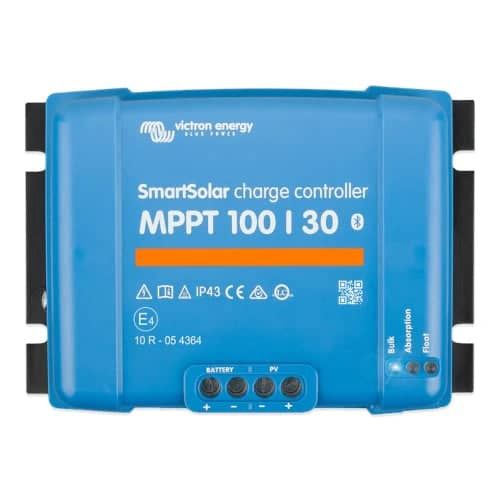

SmartSolar MPPT 100/30 SCC110030210

A solar charger gathers energy from your solar panels, and stores it in your batteries. Using the latest, fastest technology, SmartSolar maximises this energy-harvest, driving it intelligently to achieve full charge in the shortest possible time. The SmartSolar MPPT 100/30 maintains battery health, extending its life.

The SmartSolar charge controller will even recharge a severely depleted battery. The charge controller can operate with a battery voltage as low as 0 Volts, providing the cells are not permanently sulphated or otherwise damaged.

Features of the SmartSolar MPPT 100/30

MPPT: Ultra Fast Maximum Power Point Tracking

By constantly monitoring the voltage and current output of your solar (PV) panels, MPPT technology ensures that every drop of available power is rinsed out of your panels, and harvested for storage. The advantage of this is most noticeable when the sky is partially clouded, and light intensity is constantly changing.

Remote Monitoring and Control

Remotely control and monitor the extensive features of your SmartSolar MPPT charger with built-in Bluetooth by pairing it with your smartphone or other device via VictronConnect. If your installation is connected to the internet with a GX device, the Victron Remote Management Portal (VRM) provides access to the full power of your MPPT, anytime, anywhere; both VictronConnect and VRM are free to use. For remote installations – even when there is no internet connection nearby – you may be able to monitor your MPPT by connecting the GlobalLink 520.

Extensive Electronic Protection
– Over-temperature protection and power derating when temperature is high.
– PV short circuit and PV reverse polarity protection.
– PV reverse current protection.

Fully Discharged Battery Recovery Function
Will initiate charging even if the battery has been discharged to zero volts.
Will reconnect to a fully discharged Li-ion battery with integrated disconnect function.
